| Model: Pro B660M-C D4-CSM |
| Supported CPU: 14th, 13th & 12th Gen Core, Pentium Gold & Celeron (LGA1700) |
| Supported RAM: 4x DDR4, Max 128GB |
| Graphics Output: 2 x DisplayPort, 1 x D-Sub, 1 x HDMI |
| Features: 1 x Intel 1Gb Ethernet |
- Stock: In Stock

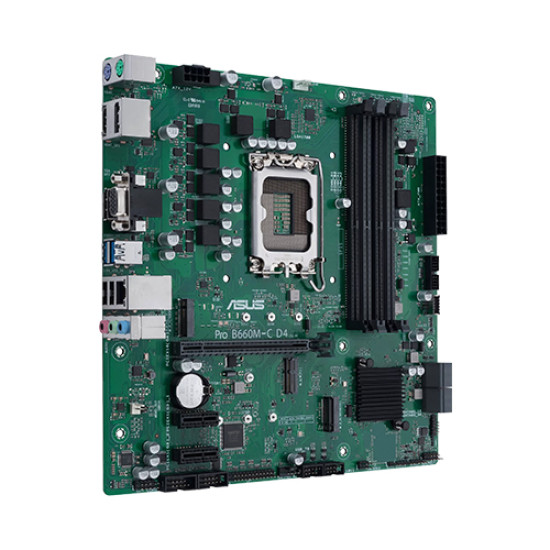

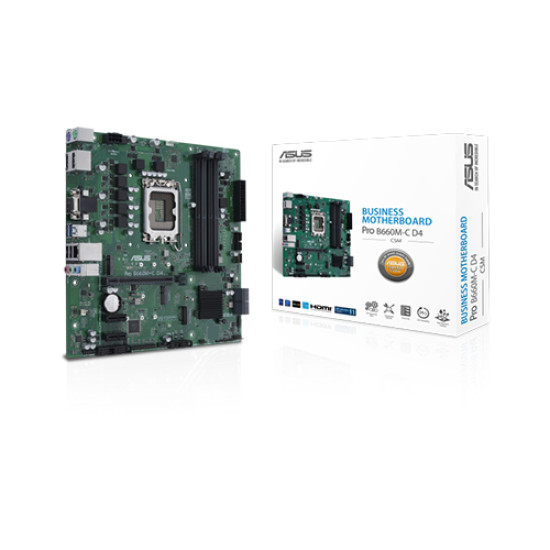

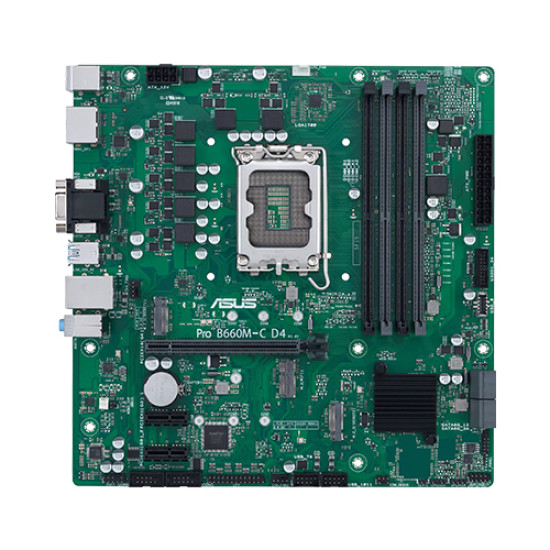

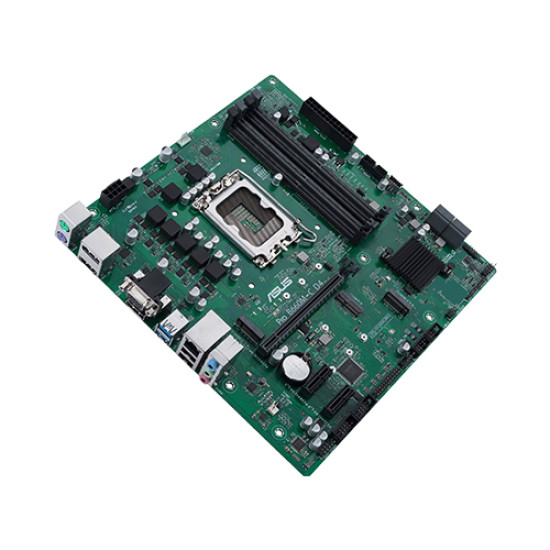

ASUS Pro B660M-C D4-CSM mATX Motherboard
The ASUS Pro B660M-C D4-CSM Motherboard in Bangladesh is an advanced business-class mATX motherboard engineered for enterprise PCs, office systems, and IT infrastructure setups. Supporting 14th Gen, 13th Gen, and 12th Gen Intel processors, this ASUS B660 motherboard with LGA 1700 socket is ideal for delivering consistent, stable, and long-term computing performance. Designed under the ASUS Corporate Stable Model (CSM) program, it provides extended availability, 36-month lifecycle support, and up to 6 months of EOL notice—perfect for structured IT deployment and transitions in Bangladesh's business sector. Included with this motherboard is the powerful ASUS Control Center Express, a simplified IT management software that enables real-time hardware monitoring, easier deployment, remote updates, and multi-device administration. Whether you're managing an office network or a large corporate environment, this tool provides centralized control to enhance productivity. The ASUS B660M-C D4-CSM motherboard is built for 24/7 durability with industrial-grade components, offering consistent performance in high-demand business conditions. With support for DDR4 RAM up to 5066MHz (OC), dual M.2 NVMe storage, and PCIe 4.0 expansion, it allows for both speed and scalability. Certified by international organizations for safety, environmental compliance, and enterprise readiness, this Intel B660 business motherboard ensures a reliable and secure computing experience. For ease of maintenance, it features the ASUS Debug Header, which, when paired with an ASUS Debug Card, helps IT teams pinpoint issues through real-time diagnostic codes—streamlining mass deployment and troubleshooting in corporate setups. Backed by a 3-year warranty in Bangladesh, the ASUS Pro B660M-C D4-CSM motherboard is perfect for businesses seeking a cost-effective, long-lasting, and IT-friendly platform that enhances operational efficiency and total cost of ownership. Whether for SMEs, corporate IT departments, or managed service providers, this is a top-tier commercial motherboard solution.
Order ASUS Pro B660M-C D4-CSM mATX Motherboard at Best Price Online in Bangladesh
Looking for the original ASUS Pro B660M-C D4-CSM mATX Motherboard in Bangladesh? One Stop offers a wide range of latest ASUS Intel motherboards perfect for any Desktop PC build. You can buy online or visit One Stop outlets across the country to get yours at the best price in BD. The ASUS Pro B660M-C D4-CSM motherboard includes a solid 3-year warranty, ensuring both performance and peace of mind.
How much does the ASUS Pro B660M-C D4-CSM mATX Motherboard cost in Bangladesh today?
The ASUS Pro B660M-C D4-CSM mATX Motherboard price in Bangladesh is currently 16,500৳. Grab the best deal on ASUS motherboard in BD by ordering online from our website or visiting any One Stop showroom near you.
| Key Features | |
| key1 | Model: Pro B660M-C D4-CSM |
| key2 | Supported CPU: 14th, 13th & 12th Gen Core, Pentium Gold & Celeron (LGA1700) |
| key3 | Supported RAM: 4x DDR4, Max 128GB |
| key4 | Graphics Output: 2 x DisplayPort, 1 x D-Sub, 1 x HDMI |
| key5 | Features: 1 x Intel 1Gb Ethernet |
| Basic Information | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback " * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| BIOS | 128Mb Flash ROM |
| Chipset | Intel B660 Chipset |
| Form Factor | microATX 24.4cm x 24.4cm |
| Supported CPU | Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Expansion Slots | |
| PCI | Intel 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset 2 x PCIe 3.0 x1 slots |
| Memory | |
| Maximum Memory | 128GB |
| Slots | 4 x DIMM slots |
| Supported Memory | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimem |
| Type | DDR4 |
| Connector & Ports | |
| Audio | 3 x Audio jacks |
| D-Sub (s) | 1 x D-Sub |
| Display Port (s) | 2 x DisplayPort |
| HDMI Port | 1 x HDMI |
| Internal I/O Ports | Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headersPower related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connectorStorage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header |
| LAN Port (s) | 1 x Intel 1Gb Ethernet ASUS LANGuard |
| Supported Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. |

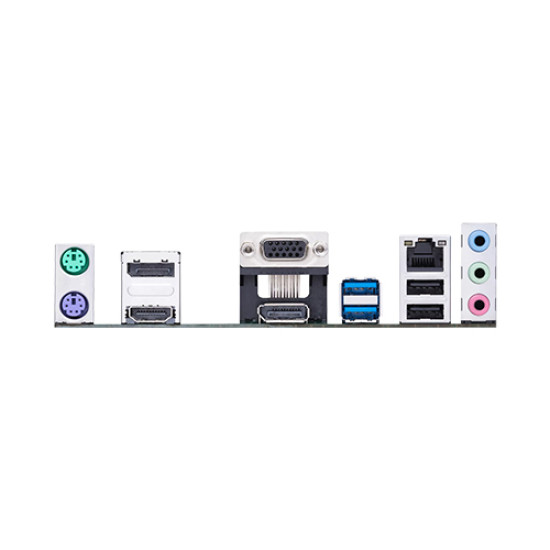

| USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately. |
| Graphics | |
| Graphics | 2 x DisplayPort** 1 x D-Sub port 1 x HDMI port ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Other Features | |
| Bundled Software | ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE) |
| Special Features | ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - Q-LED Core - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture - 24/7 Reliability - Overcurrent Protection TPM IC onboard |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |
