| Model: PRIME H610I-PLUS D4 |
| Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700) |
| Supported RAM: 2x DDR4, Max 64GB 3200 |
| Graphics Output: 1x HDMI port, 1x DisplayPort, 1 x D-Sub |
| Features: 1 x Realtek 1Gb Ethernet |
- Stock: In Stock
| Key Features | |
| key1 | Model: PRIME H610I-PLUS D4 |
| key2 | Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700) |
| key3 | Supported RAM: 2x DDR4, Max 64GB 3200 |
| key4 | Graphics Output: 1x HDMI port, 1x DisplayPort, 1 x D-Sub |
| key5 | Features: 1 x Realtek 1Gb Ethernet |
| Basic Information | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | Intel H610 Chipset |
| Form Factor | Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm ) |
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 slots |
| PCI | Intel 14th & 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot |
| Memory | |
| Maximum Memory | Max. 64GB |
| Slots | 2x DIMM |
| Supported Memory | 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
| Type | DDR4 |
| Connector & Ports | |
| Audio | 3x Audio jacks |
| D-Sub (s) | 1 x D-Sub |
| HDMI Port | 1 x HDMI port |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Mono-out header(with Amp IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet port |
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports |

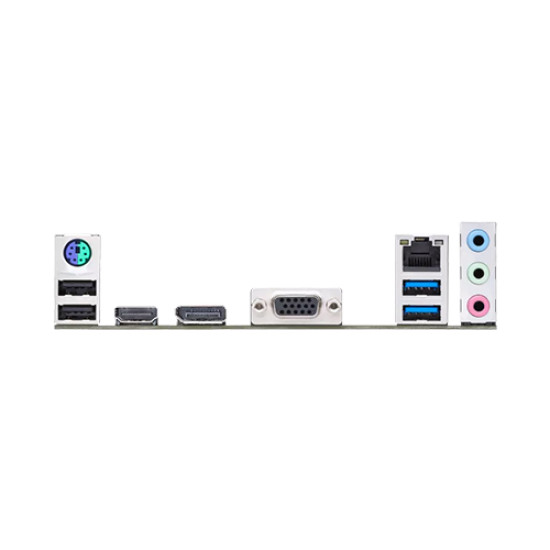

| USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately. |
| Graphics | |
| Graphics | Support DisplayPort 1.4 with max. resolution of 4K@60Hz. Support HDMI® 2.1 with max. resolution of 4K@60Hz. |
| Other Features | |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Aluminum heatsink design |
| Warranty Information | |
| Manufacturing Warranty | 3 years warranty |

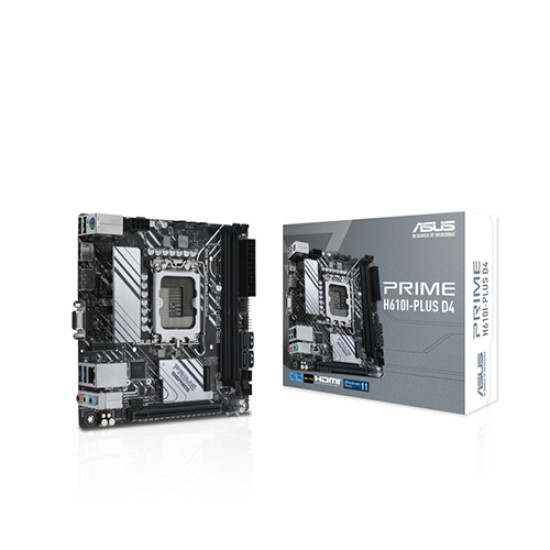

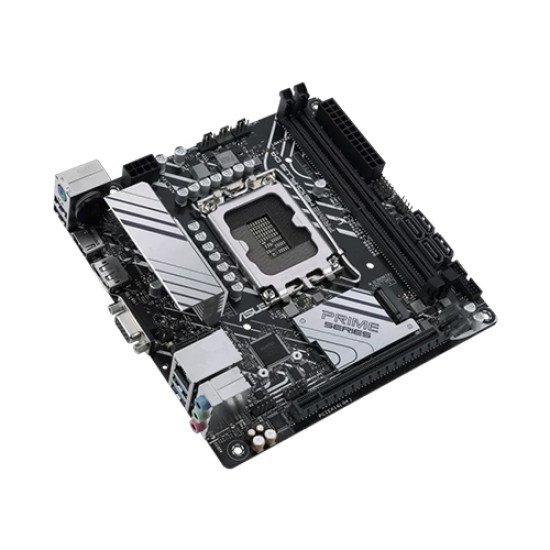

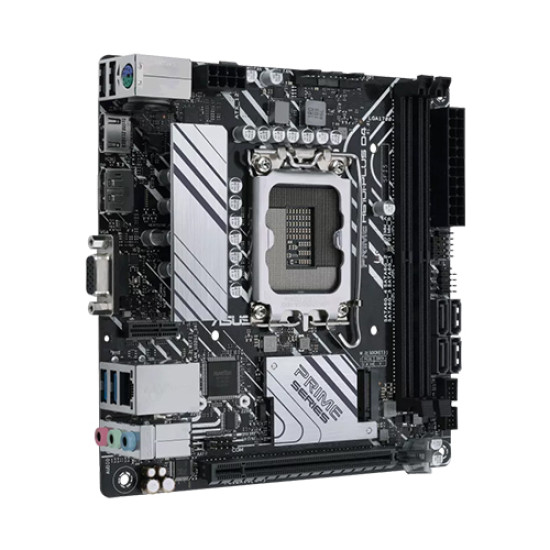

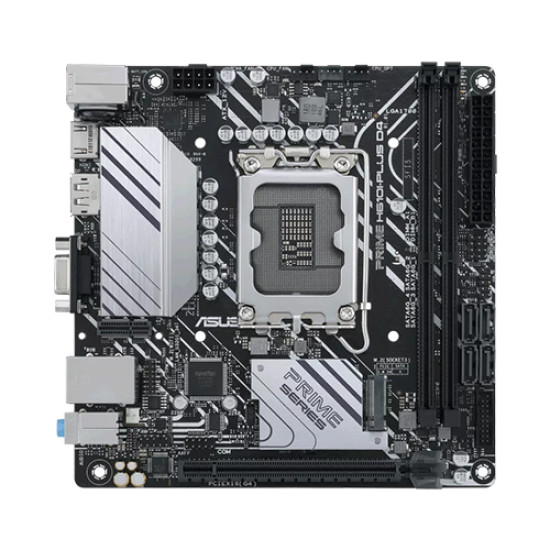

ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard
The ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard in Bangladesh is a compact yet powerful solution for small form factor builds, offering exceptional stability and connectivity. Built on the Intel H610 chipset, this Mini ITX motherboard supports 14th Gen, 13th Gen, and 12th Gen Intel Core processors with LGA 1700 socket, making it ideal for high-performance PCs in tight spaces. Engineered with 5+1+1 DrMOS power stages, the board delivers consistent power output for smooth multitasking, content creation, and light gaming. Efficient thermal design is ensured with dedicated VRM and PCH heatsinks, and ASUS Fan Xpert technology helps maintain optimal temperatures. The board includes a fast 32Gbps M.2 NVMe slot for rapid SSD storage, Realtek 1Gb Ethernet for stable online connectivity, and multiple USB 3.2 Gen 1 ports for high-speed data transfers—making it a future-ready solution for compact desktop setups in Bangladesh. With triple display output options including HDMI, DisplayPort, and D-Sub, this board offers display flexibility whether you're setting up a home office, streaming rig, or compact workstation. Additional I/O options include COM port, mono-out header with Amp IC, and SATA 6Gbps ports for extended compatibility and fast file access. For enhanced protection, the ASUS H610I-PLUS motherboard includes 5X Protection III, safeguarding your system against voltage fluctuations and electrical damage. Whether you're building a mini-PC for work or play, the ASUS PRIME H610I-PLUS D4 Mini ITX motherboard delivers reliable performance, intelligent cooling, and versatile connectivity in a compact form. It’s an excellent choice for Bangladeshi gamers, developers, and professionals looking for an affordable yet durable Intel 12th/13th/14th Gen compatible motherboard in a mini-ITX format.
Order ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard at Best Price Online in Bangladesh
Looking for the original ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard in Bangladesh? One Stop offers a wide range of latest ASUS Intel motherboards perfect for any Desktop PC build. You can buy online or visit One Stop outlets across the country to get yours at the best price in BD. The ASUS PRIME H610I-PLUS D4 motherboard includes a solid 3-year warranty, ensuring both performance and peace of mind.
How much does the ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard cost in Bangladesh today?
The ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard price in Bangladesh is currently 16,700৳. Grab the best deal on ASUS motherboard in BD by ordering online from our website or visiting any One Stop showroom near you.
