| Model: PRIME N100I-D D4 |
| Supported CPU: Onboard Intel Processor N100 |
| Supported Memory: 1 x SO-DIMM, Max. 16GB, DDR4 |
| Graphics Output: 1 x HDMI, 1 x VGA port, 1 x DisplayPort |
| Features: 1 x Realtek 1Gb Ethernet |
- Stock: In Stock
| Key Features | |
| key1 | Model: PRIME N100I-D D4 |
| key2 | Supported CPU: Onboard Intel Processor N100 |
| key3 | Supported Memory: 1 x SO-DIMM, Max. 16GB, DDR4 |
| key4 | Graphics Output: 1 x HDMI, 1 x VGA port, 1 x DisplayPort |
| key5 | Features: 1 x Realtek 1Gb Ethernet |
| Basic Information | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-Recording, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | Mini-ITX Form Factor 6.7 inch x 6.7 inch (17cm x 17cm) |
| Supported CPU | Onboard Intel Processor N100 Supports Intel Turbo Boost Technology 2.0 |
| Expansion Slots | |
| PCI | 1 x PCIe 3.0 x1 slot |
| Memory | |
| Maximum Memory | Max. 16GB |
| Slots | 1 x SO-DIMM |
| Supported Memory | 3200/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* * We recommend that you use 16GB or less memory module. |
| Type | DDR4 |
| Connector & Ports | |
| Audio | 3 x Audio jacks |
| Display Port (s) | 1 x DisplayPort |
| HDMI Port | 1 x HDMI port |
| Internal I/O Ports | Internal I/O Connectors Fan and cooling related 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 1 x SATA 6Gb/s port USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x Chassis Intrude header 1 x LPT header 1 x S/PDIF out header 1 x SPI TPM header (14-1pin) 1 x Speaker Header 1 x System Panel connector |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet ASUS LANGuard |
| Supported Storage | Total supports 1 x M.2 slot and 1 x SATA 6Gb/s port 1 x M.2 Socket 3 with M key, type 2260/2280 (supports PCIe 3.0 x 2 mode) 1 x SATA 6Gb/s port |

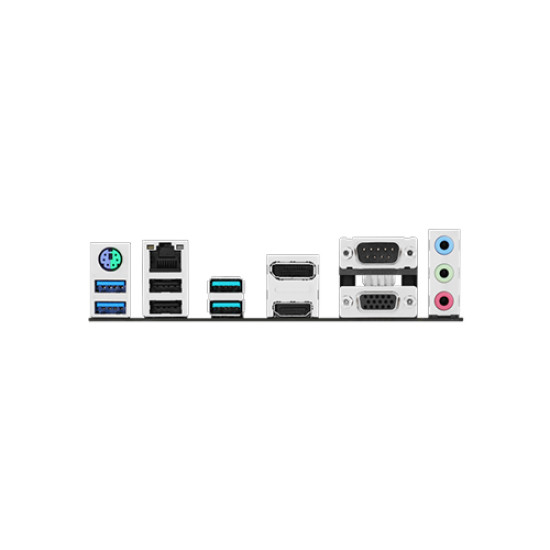

| USB (s) | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)* 2 x USB 2.0 ports (2 x Type-A） Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports* 1 x USB 2.0 header supports 2 additional USB 2.0 ports * U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth. |
| VGA (s) | 1 x VGA port |
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. |
| Graphics | |
| Graphics | 1 x DisplayPort** 1 x VGA port 1 x HDMITM port*** **Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMITM 2.1. |
| Other Features | |
| Bundled Software | ASUS Exclusive Software ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 |
| Special Features | Proven Quality - ESD Guards - LANGuard - Overvoltage Protection - Stainless-Steel Back I/O ASUS Q-Design - Q-LED Core ASUS Thermal Solution - CPU heatsink design |
| Warranty Information | |
| Manufacturing Warranty | 3 years warranty |

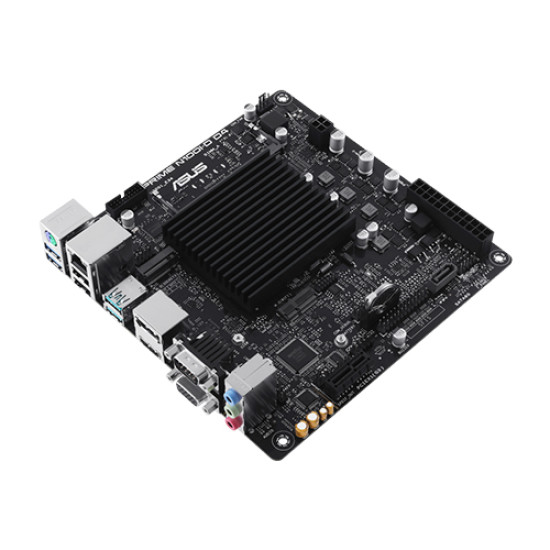

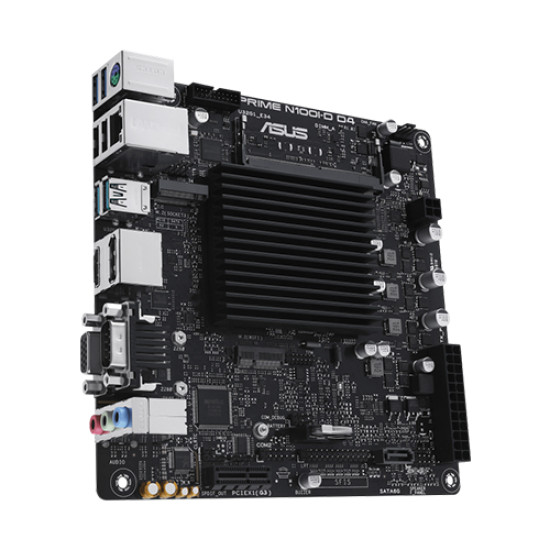

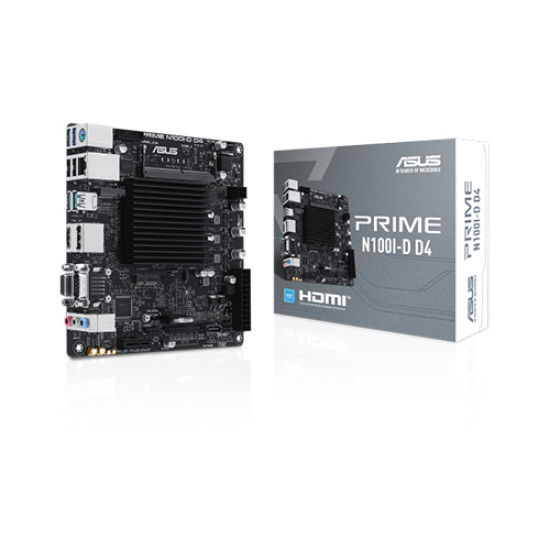

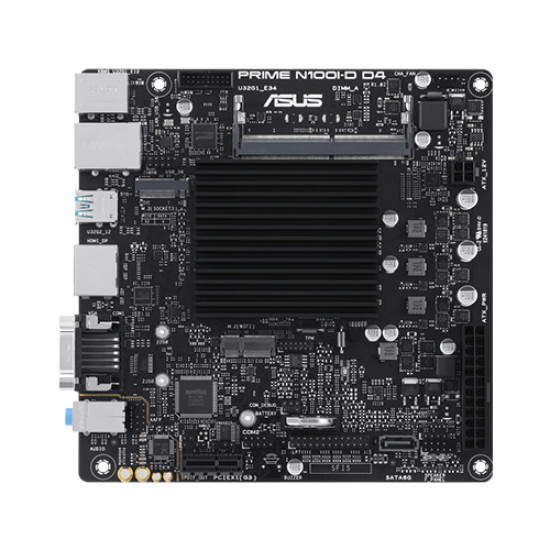

Asus PRIME N100I-D D4 Mini-ITX Motherboard
The Asus PRIME N100I-D D4 Mini-ITX Motherboard is a compact, energy-efficient solution built for small form factor systems and industrial PC setups in Bangladesh. Powered by the integrated Intel Processor N100, this Mini-ITX motherboard in Bangladesh is engineered for silent performance, using a fanless heatsink design that ensures passive cooling without additional noise. Ideal for home servers, thin clients, or embedded applications, this board is a solid choice for tech enthusiasts and businesses alike. The Asus N100 motherboard includes essential modern connectivity, offering multiple display outputs such as HDMI, VGA, and DisplayPort, perfect for connecting to different types of monitors and projectors. For fast data transfer, the board features a rear USB 3.2 Gen 2 port, USB 3.2 Gen 1 front panel ports, and Gigabit Ethernet (1Gb LAN) for consistent internet connectivity, which is crucial for home server builds in Bangladesh. For storage flexibility, the ASUS PRIME N100I-D D4 motherboard provides a high-speed M.2 slot (16Gbps) for NVMe SSDs, along with SATA 6Gbps ports for HDD or SSD installation. Its legacy support is extensive, including LPT and COM ports, and an M.2 WiFi slot, which makes it suitable for industrial and point-of-sale (POS) applications that require backward compatibility. This Intel N100 motherboard also includes a COM debug header, which simplifies troubleshooting during setup and maintenance—a valuable feature for technicians. As part of the trusted ASUS Prime series, this board comes with intelligent BIOS tuning, robust power delivery, and hardware-level protection, making it one of the most reliable and affordable solutions in the Mini-ITX motherboard category in Bangladesh. Whether you're building a low-power desktop, DIY NAS system, or a fanless industrial PC, the Asus PRIME N100I-D D4 motherboard price in Bangladesh makes it an excellent value pick. With premium features, silent operation, and compact design, it offers unmatched flexibility and performance for specialized and general computing needs.
Order Asus PRIME N100I-D D4 Mini-ITX Motherboard at Best Price Online in Bangladesh
Looking for the original Asus PRIME N100I-D D4 Mini-ITX Motherboard in Bangladesh? One Stop offers a wide range of latest ASUS Intel motherboards perfect for any Desktop PC build. You can buy online or visit One Stop outlets across the country to get yours at the best price in BD. The Asus PRIME N100I-D D4 motherboard includes a solid 3-year warranty, ensuring both performance and peace of mind.
How much does the Asus PRIME N100I-D D4 Mini-ITX Motherboard cost in Bangladesh today?
The Asus PRIME N100I-D D4 Mini-ITX Motherboard price in Bangladesh is currently 12,800৳. Grab the best deal on ASUS motherboard in BD by ordering online from our website or visiting any One Stop showroom near you.
