| Model: PRIME H610M-CS D4 |
| Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700) |
| Supported Memory: 2 x DIMM, Max. 64GB, DDR4 |
| Graphics Output: 1 x VGA, 1 x HDMI |
| Features: 1 x Realtek 1Gb Ethernet |
- Stock: In Stock
| Key Features | |
| key1 | Model: PRIME H610M-CS D4 |
| key2 | Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700) |
| key3 | Supported Memory: 2 x DIMM, Max. 64GB, DDR4 |
| key4 | Graphics Output: 1 x VGA, 1 x HDMI |
| key5 | Features: 1 x Realtek 1Gb Ethernet |
| Basic Information | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | Intel H610 Chipset |
| Form Factor | mATX Form Factor 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm ) |
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 slot |
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
| Memory | |
| Maximum Memory | Max. 64GB |
| Slots | 2 x DIMM |
| Supported Memory | 3200MHz/ 3000MHz/ 2933MHz/ 2800MHz/ 2666MHz/ 2400MHz/ 2133MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Type | DDR4 |
| Connector & Ports | |
| Audio | 3 x Audio jacks |
| HDMI Port | 1 x HDMI port |

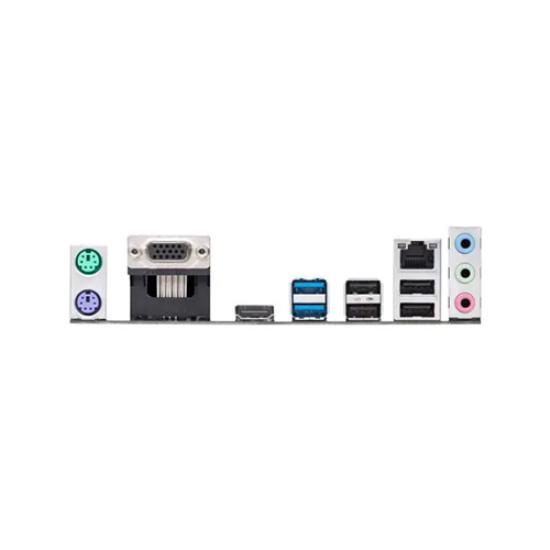

| Internal I/O Ports | Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel headerBack Panel I/O Ports 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x VGA port 1 x HDMITM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet |
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports |
| USB (s) | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| VGA (s) | 1 x VGA port |
| Graphics | |
| Graphics | 1 x VGA port 1 x HDMITM port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMITM 2.1. |
| Other Features | |
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 EPU DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design USBGuard |
| Warranty Information | |
| Manufacturing Warranty | 3 years warranty |

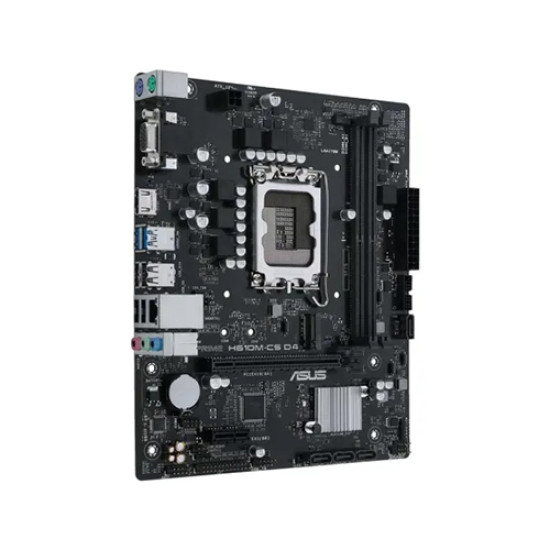

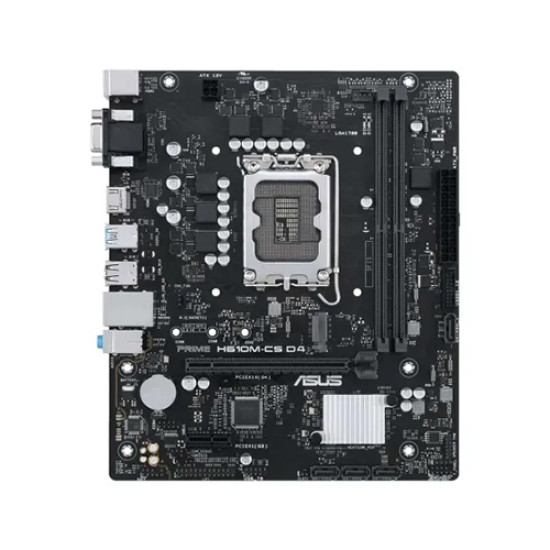

Asus PRIME H610M-CS D4 mATX Motherboard
The Asus PRIME H610M-CS D4 mATX Motherboard is an affordable and high-performance solution for users in Bangladesh looking to build or upgrade a desktop PC with Intel’s latest technology. Designed with the LGA1700 socket, it supports 12th, 13th, and 14th Gen Intel Core i3, i5, i7, and i9 processors, offering wide compatibility and reliable processing power. Powered by the Intel H610 chipset, this Asus motherboard delivers excellent connectivity and performance for daily computing, content creation, and even light gaming. The board supports DDR4 RAM for faster multitasking and smoother application handling. Its PCIe 4.0 x16 slot enables high-speed GPU and expansion card connectivity, while an integrated M.2 slot ensures blazing-fast boot times and storage access with NVMe SSDs. Equipped with Realtek 1Gb Ethernet, HDMI and D-Sub display outputs, and USB 3.2 Gen 1 ports, it ensures seamless device connections and high-speed data transfer. For enhanced reliability in Bangladesh’s climate, the Asus PRIME H610M-CS D4 features 5X Protection III, which includes overvoltage protection, stable power delivery, and reinforced components. A PCH heatsink keeps temperatures in check during intense workloads. In addition, a moisture-resistant PCB coating shields against humidity and corrosion—perfect for long-term use in tropical environments. With its compact micro-ATX form factor, the motherboard is ideal for building space-saving systems without compromising features. Whether you’re assembling a home office PC, a student workstation, or a creative rig, this board offers a dependable, flexible platform for your needs. Choose the Asus PRIME H610M-CS D4 motherboard in Bangladesh for a future-ready build packed with durability, speed, and essential features.
Order Asus PRIME H610M-CS D4 mATX Motherboard at Best Price Online in Bangladesh
Looking for the original Asus PRIME H610M-CS D4 mATX Motherboard in Bangladesh? One Stop offers a wide range of latest ASUS Intel motherboards perfect for any Desktop PC build. You can buy online or visit One Stop outlets across the country to get yours at the best price in BD. The Asus PRIME H610M-CS motherboard includes a solid 3-year warranty, ensuring both performance and peace of mind.
How much does the Asus PRIME H610M-CS D4 mATX Motherboard cost in Bangladesh today?
The Asus PRIME H610M-CS D4 Motherboard price in Bangladesh is currently 10,300৳. Grab the best deal on ASUS motherboard in BD by ordering online from our website or visiting any One Stop showroom near you.
