| Model: PRIME H610M-R |
| Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700) |
| Supported Memory: 2 x DIMM, Max. 96GB, DDR5 5600 |
| Graphics Output: 1x HDMI, 1x VGA, 1x DP |
| Features: 1x M.2 slot, 1x Realtek 1Gb Ethernet |
- Stock: In Stock
| Key Features | |
| key1 | Model: PRIME H610M-R |
| key2 | Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700) |
| key3 | Supported Memory: 2 x DIMM, Max. 96GB, DDR5 5600 |
| key4 | Graphics Output: 1x HDMI, 1x VGA, 1x DP |
| key5 | Features: 1x M.2 slot, 1x Realtek 1Gb Ethernet |
| Basic Information | |
| Audio | 3 x Audio jacks |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | Intel H610 Chipset |
| Form Factor | mATX Form Factor 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm ) |
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core™ 12th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** |
| Expansion Slots | |
| M.2 Socket | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports |
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
| Memory | |
| Maximum Memory | Max. 96GB |
| Slots | 2 x DIMM |
| Supported Memory | DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration |
| Type | DDR5 |
| Connector & Ports | |
| Audio | ealtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Display Port (s) | 1 x Display port |
| HDMI Port | 1 x HDMI port |

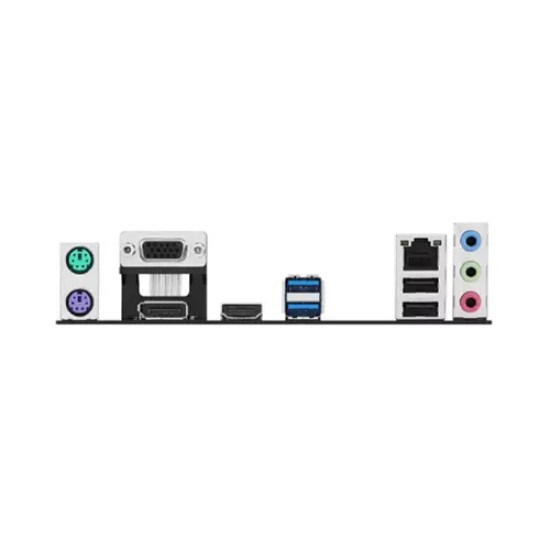

| Internal I/O Ports | Back Panel I/O Ports 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMITM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) portInternal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x Speaker header 1 x 10-1 pin System Panel header |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet |
| Supported Storage | 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1 pin) |
| USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| VGA (s) | 1 x VGA |
| Graphics | |
| Graphics | 1 x DisplayPort** 1 x VGA port 1 x HDMITM port**** Graphics specifications may vary between CPU types. |
| Other Features | |
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 EPU DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design |
| Warranty Information | |
| Manufacturing Warranty | 3 years Warranty |
ASUS PRIME H610M-R DDR5 LGA1700 mATX Motherboard
The ASUS PRIME H610M-R DDR5 LGA1700 mATX Motherboard is a compact and reliable solution for building a powerful Intel-based desktop PC in Bangladesh. Built on the Intel H610 chipset, this motherboard supports the latest 12th, 13th, and 14th Gen Intel Core processors, delivering robust performance for both personal and professional computing needs. With support for DDR5 RAM up to 96GB via dual DIMM slots, users can enjoy faster speeds, enhanced multitasking, and future-ready memory architecture. This ASUS H610 motherboard in Bangladesh features a micro-ATX form factor, making it ideal for compact builds without compromising on performance. It includes a PCIe 4.0 x16 slot for dedicated graphics cards, a PCIe 3.0 x1 slot for expansion, and a mix of storage options such as an M.2 PCIe 3.0 x4 slot and four SATA 6Gb/s ports, ensuring flexibility for SSDs and traditional HDDs. The board offers versatile display connectivity with HDMI, VGA, and DisplayPort outputs, making it compatible with both modern and legacy monitors. For reliable networking, the ASUS PRIME H610M-R DDR5 motherboard is equipped with Realtek 1Gb Ethernet, ensuring stable and fast wired internet access. It also comes with USB 3.2 Gen 1 and USB 2.0 ports for connecting multiple peripherals with ease. The board features ASUS 5X Protection III, which includes high-quality components, reinforced soldering, and surge protection, delivering long-term durability. The aluminum VRM heatsink and onboard thermal solutions provide efficient cooling even under load. The UEFI BIOS on this ASUS Intel 12th Gen motherboard is beginner-friendly yet offers deep customization for advanced users. Whether you're assembling a home desktop, office PC, or entry-level gaming rig, the ASUS PRIME H610M-R DDR5 motherboard price in Bangladesh makes it a value-packed choice. Designed for stability, performance, and easy integration, it’s a top pick among budget-conscious builders looking for a reliable DDR5 ASUS motherboard.
Order ASUS PRIME H610M-R DDR5 LGA1700 mATX Motherboard at Best Price Online in Bangladesh
Looking for the original ASUS PRIME H610M-R DDR5 LGA1700 mATX Motherboard in Bangladesh? One Stop offers a wide range of latest ASUS Intel motherboards perfect for any Desktop PC build. You can buy online or visit One Stop outlets across the country to get yours at the best price in BD. The ASUS PRIME H610M-R motherboard includes a solid 3-year warranty, ensuring both performance and peace of mind.
How much does the ASUS PRIME H610M-R DDR5 LGA1700 mATX Motherboard cost in Bangladesh today?
The ASUS PRIME H610M-R DDR5 LGA1700 mATX Motherboard price in Bangladesh is currently 10,999৳. Grab the best deal on ASUS motherboard in BD by ordering online from our website or visiting any One Stop showroom near you.
