| Model: PRIME A520M-R |
| CPU: AMD AM4 Socket for AMD Ryzen 5000 / 4000 / 3000 Series |
| Supported RAM: 2 x DIMM ,Max 64GB, Up to 5100(OC) |
| Output: 1 x HDMI |
| Features: 1 x M.2, 4 x SATA 6Gb/s ports |
- Stock: In Stock
| Key Features | |
| key1 | Model: PRIME A520M-R |
| key2 | CPU: AMD AM4 Socket for AMD Ryzen 5000 / 4000 / 3000 Series |
| key3 | Supported RAM: 2 x DIMM ,Max 64GB, Up to 5100(OC) |
| key4 | Output: 1 x HDMI |
| key5 | Features: 1 x M.2, 4 x SATA 6Gb/s ports |
| Basic Information | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features: - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | A520 |
| Form Factor | micro-ATX Form Factor 9.3 inch x 7.6 inch ( 23.6 cm x 19.3 cm ) |
| Supported CPU | AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors |
| Expansion Slots | |
| M.2 Socket | Supports 1 x M.2 |
| PCI | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 1 x PCIe 3.0 x1 slot |
| Memory | |
| Maximum Memory | 64GB |
| Slots | 2 x DIMM |
| Supported Memory | DDR4 5100(OC)/ 4866(OC)/ 4666(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, Un-buffered Memory* Dual channel memory architecture * ECC memory (ECC mode) support varies by CPU |
| Type | DDR4 |
| Connector & Ports | |
| Audio | 3 x Audio jacks |
| HDMI Port | 1 x HDMI |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power Related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage Related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet ASUS LANGuard |
| Supported Storage | 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |

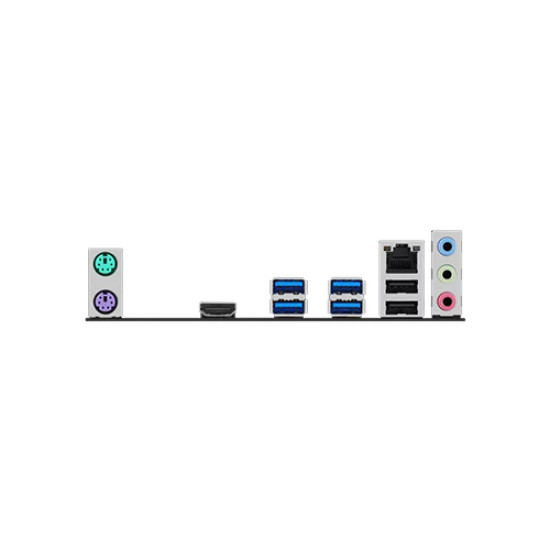

| USB (s) | Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Graphics | |
| Graphics | 1 x HDMI port** * Graphics specifications may vary between CPU types |
| Other Features | |
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert - EZ update - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design |
| Warranty Information | |
| Manufacturing Warranty | 03-Year Warranty |

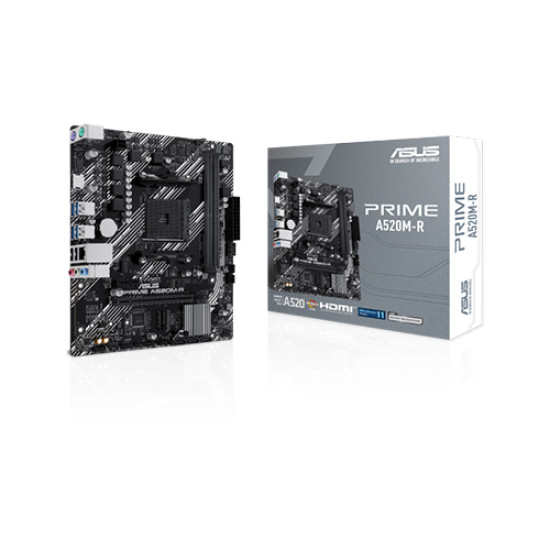

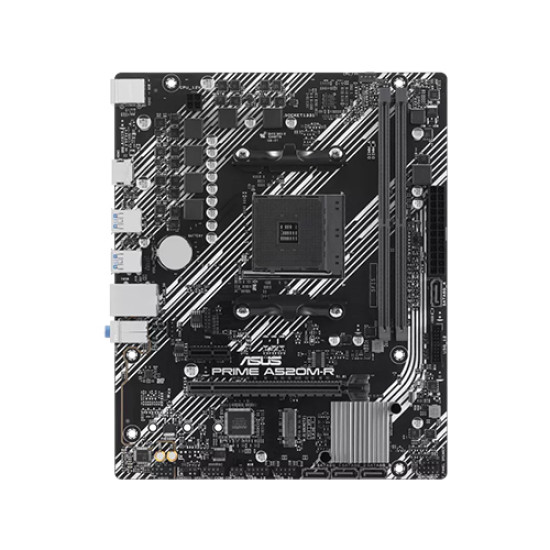

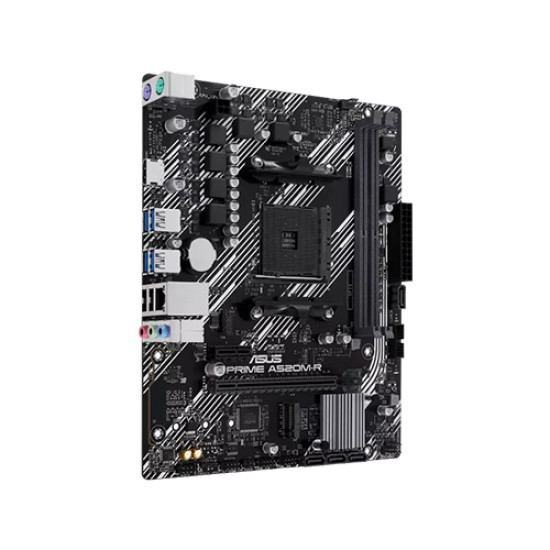

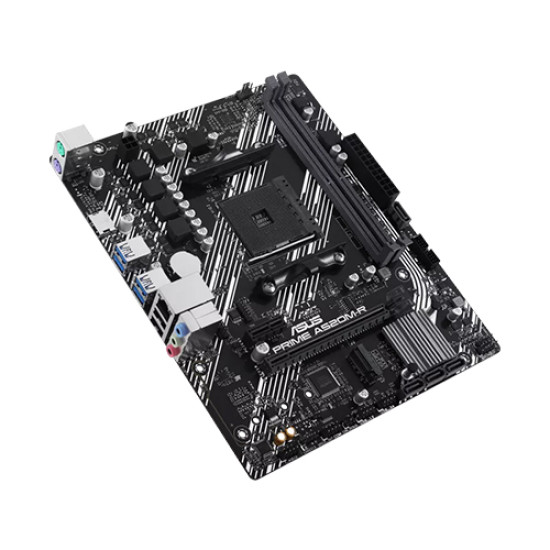

Asus PRIME A520M-R AM4 micro ATX Motherboard
The ASUS PRIME A520M-R AM4 Motherboard in Bangladesh is a compact and efficient micro ATX AMD motherboard designed to meet the needs of home users, casual gamers, and productivity seekers. Powered by the AMD A520 chipset, this Asus AM4 motherboard supports a wide range of processors, including Ryzen 5000, 5000G, 4000G, and 3000 Series CPUs, making it a smart long-term investment for budget-friendly PC builds in Bangladesh. Its compact Micro ATX form factor makes it ideal for small cases, while still offering impressive performance. With support for up to 64GB DDR4 RAM (up to 5100MHz OC), users can experience smooth multitasking and fast system responsiveness. For storage, the board includes a high-speed PCIe 3.0 x4 M.2 slot and four SATA 6Gb/s ports, giving flexibility for SSD and HDD configurations to boost both boot speed and storage capacity. The ASUS PRIME A520M-R motherboard features one PCIe 3.0 x16 GPU slot and one PCIe 3.0 x1 slot, allowing for expansion cards and graphics upgrades. The integrated Realtek Gigabit LAN ensures stable and fast wired internet, while the HDMI port with 4K 60Hz output supports ultra-clear visuals for media consumption or multi-monitor setups. A mix of USB 3.2 Gen 1 and USB 2.0 ports on both the front and rear panel ensures easy peripheral connectivity. Audio is powered by Realtek 7.1 surround sound with premium capacitors and PCB isolation design for noise-free output, enhancing entertainment and gaming experiences. Cooling is handled by a passive chipset heatsink and ASUS Fan Xpert utility, letting users control fan profiles based on usage. With ASUS 5X Protection III, this motherboard is built for durability with safeguards against overvoltage, short circuits, and more. DIY-friendly features like Q-LED indicators make building and troubleshooting easier. Compatible with Windows 10 and Windows 11 64-bit, the ASUS PRIME A520M-R AM4 Motherboard delivers great value, dependable performance, and strong upgrade potential—making it a top choice for users building budget to mid-range PCs in Bangladesh.
Order Asus PRIME A520M-R AM4 micro ATX Motherboard at Best Price Online in Bangladesh
Looking for the original Asus PRIME A520M-R AM4 micro ATX Motherboard in Bangladesh? One Stop offers a wide range of latest ASUS AMD motherboards perfect for any Desktop PC build. You can buy online or visit One Stop outlets across the country to get yours at the best price in BD. The Asus PRIME A520M-R motherboard includes a solid 3-year warranty, ensuring both performance and peace of mind.
How much does the Asus PRIME A520M-R AM4 micro ATX Motherboard cost in Bangladesh today?
The Asus PRIME A520M-R AM4 micro ATX Motherboard price in Bangladesh is currently 8,500৳. Grab the best deal on ASUS motherboard in BD by ordering online from our website or visiting any One Stop showroom near you.
