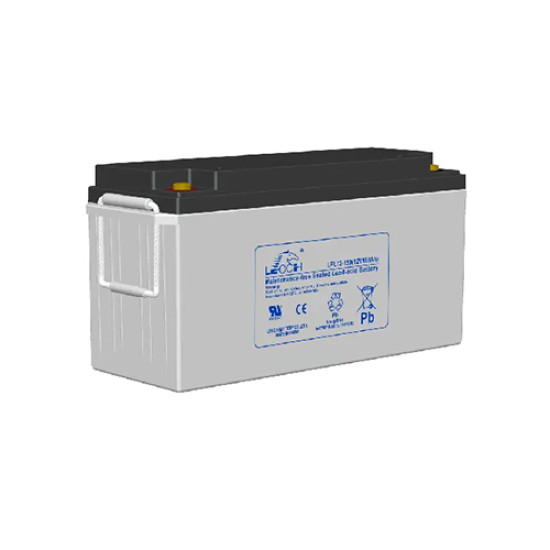

| Brand: Leoch |
| Rated Voltage: 12V |
| Nominal Capacity: 150Ah |
| Short-circuit current: 3000A |
| Internal Resistance: Approx 3.5 mΩ (Fully charged) |
| Key Features | |
| key1 | Brand: Leoch |
| key2 | Rated Voltage: 12V |
| key3 | Nominal Capacity: 150Ah |
| key4 | Short-circuit current: 3000A |
| key5 | Internal Resistance: Approx 3.5 mΩ (Fully charged) |
| Information | |
| Nominal Voltage | 12V |
| Nominal Capacity (20HR) | Nominal Capacity (25℃): C10,1.80V/cell: 150Ah |
| Dimensions | Length: 483mm (19.0inches) Width: 170mm (6.69inches) Container Height: 238.5mm (9.39inches) Total Height: 238.5mm (9.39inches) |
| Terminal | T11(M8) |
| Container Material | ABS (UL94 HB or V-0 optional) |
| Internal Resistance | Approx 3.5 mΩ (Fully charged) |
| Operating Temp. Range | Discharge: -15~50℃ (5~122°F) Charge: -20~40℃ (-4~104°F) Storage: -15~40℃ (5~104°F) |
| Nominal Operating Temp. Range | 25±3℃ (77±5°F) |
