| Model: PRO B760M-C-CSM |
| Supported CPU: 14th 13th Gen & 12th Gen Processors (LGA1700) |
| Supported Memory: 4 x DIMM, Max. 192GB, DDR5 6200(OC) |
| Graphics Output: 2 x DisplayPort, 1 x VGA, 1 x HDMI |
| Features: 1 x Intel 1Gb Ethernet |
- Stock: In Stock
| Key Features | |
| key1 | Model: PRO B760M-C-CSM |
| key2 | Supported CPU: 14th 13th Gen & 12th Gen Processors (LGA1700) |
| key3 | Supported Memory: 4 x DIMM, Max. 192GB, DDR5 6200(OC) |
| key4 | Graphics Output: 2 x DisplayPort, 1 x VGA, 1 x HDMI |
| key5 | Features: 1 x Intel 1Gb Ethernet |
| Basic Information | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
| BIOS | 128Mb Flash ROM |
| Chipset | Intel B760 Chipset |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| Supported CPU | Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Expansion Slots | |
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B760 Chipset 2 x PCIe 3.0 x1 slots |
| Memory | |
| Maximum Memory | Max. 192GB |
| Slots | 4 x DIMM |
| Supported Memory | DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimem II |
| Type | DDR5 |
| Connector & Ports | |
| Audio | 3 x Audio jacks |
| Display Port (s) | 2 x DisplayPort |
| HDMI Port | 1 x HDMI |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header (with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header |
| LAN Port (s) | 1 x Intel 1Gb Ethernet ASUS LANGuard |
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| VGA (s) | 1 x VGA port |
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. |
| Graphics | |
| Graphics | 2 x DisplayPort** 1 x VGA port 1 x HDMI port*** ** Support max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Other Features | |
| Bundled Software | ASUS Exclusive Software IT Management software supported - ASUS Control Center Express (ACCE) |
| Special Features | ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit* - Anti-Moisture Coating - 24/7 Reliability - Overcurrent Protection |
| Warranty Information | |
| Manufacturing Warranty | 3 years |

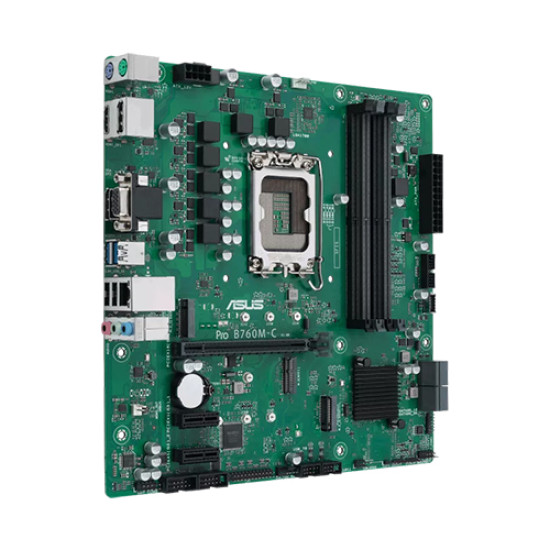

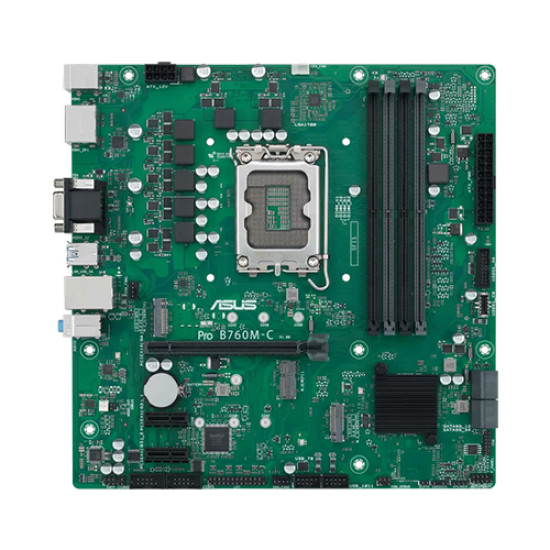

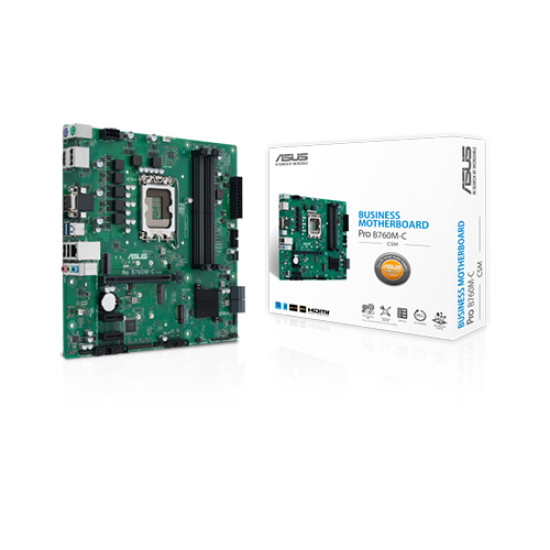

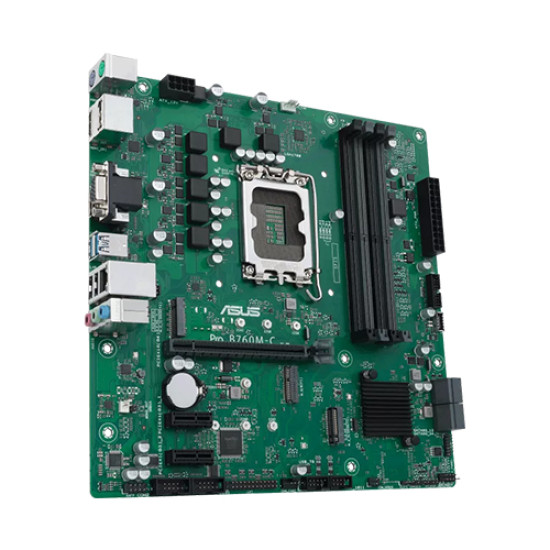

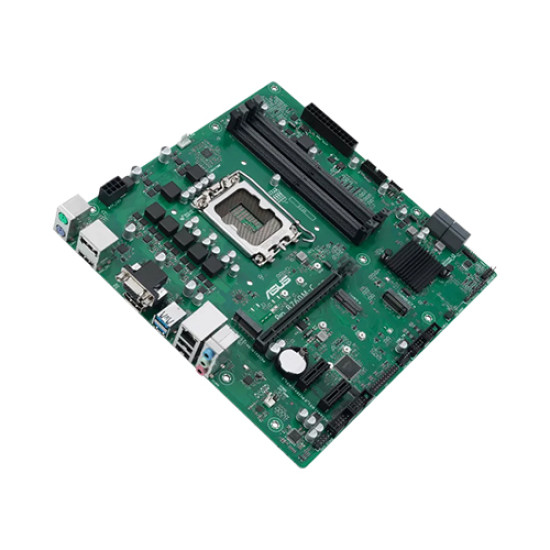

ASUS PRO B760M-C-CSM Micro-ATX Motherboard
The ASUS PRO B760M-C-CSM Motherboard in Bangladesh is a highly efficient micro-ATX business motherboard designed for stability, scalability, and long-term reliability. Built on the Intel B760 chipset, it supports the latest Intel 14th Gen processors, as well as 13th Gen, 12th Gen, Pentium Gold, and Celeron CPUs with its LGA1700 socket. With support for up to 192GB of DDR5 RAM across four DIMM slots and speeds reaching DDR5 6200MHz (OC), this board ensures ultra-fast memory performance for multitasking and productivity. Engineered for professional use, this ASUS DDR5 motherboard includes dual DisplayPort, HDMI, and VGA outputs, offering flexible display connectivity for various business environments. The PCIe 4.0 x16 slot enables smooth graphics or expansion support, while two PCIe 3.0 x1 slots allow integration of additional hardware like capture cards or networking tools. For fast storage, the board comes with 2 M.2 slots and 4 SATA 6Gb/s ports, ensuring rapid OS boot times and efficient file access. Networking is powered by a reliable Intel 1Gb Ethernet port, ideal for stable office internet connectivity. The Realtek 7.1 Surround Sound High Definition Audio CODEC delivers crystal-clear audio for conferencing or multimedia playback. In terms of maintenance, the board is equipped with ASUS Q-Design, making setup and servicing straightforward even in IT-heavy environments. This ASUS commercial motherboard includes advanced features such as ASUS Self-Recovering BIOS, ASUS Event Log, and 24/7 operational reliability, ensuring maximum uptime and minimal disruption in business settings. Built with durable components, the ASUS PRO B760M-C-CSM motherboard is perfect for users looking to build dependable, compact business desktops in Bangladesh. Its feature-rich design makes it ideal for companies, offices, and system integrators seeking stability and long-term performance.
Order ASUS PRO B760M-C-CSM Micro-ATX Motherboard at Best Price Online in Bangladesh
Looking for the original ASUS PRO B760M-C-CSM Micro-ATX Motherboard in Bangladesh? One Stop offers a wide range of latest ASUS Intel motherboards perfect for any Desktop PC build. You can buy online or visit One Stop outlets across the country to get yours at the best price in BD. The ASUS PRO B760M-C-CSM motherboard includes a solid 3-year warranty, ensuring both performance and peace of mind.
How much does the ASUS PRO B760M-C-CSM Micro-ATX Motherboard cost in Bangladesh today?
The ASUS PRO B760M-C-CSM Micro-ATX Motherboard price in Bangladesh is currently 16,900৳. Grab the best deal on ASUS motherboard in BD by ordering online from our website or visiting any One Stop showroom near you.
